Single-phase
Transformers

PH

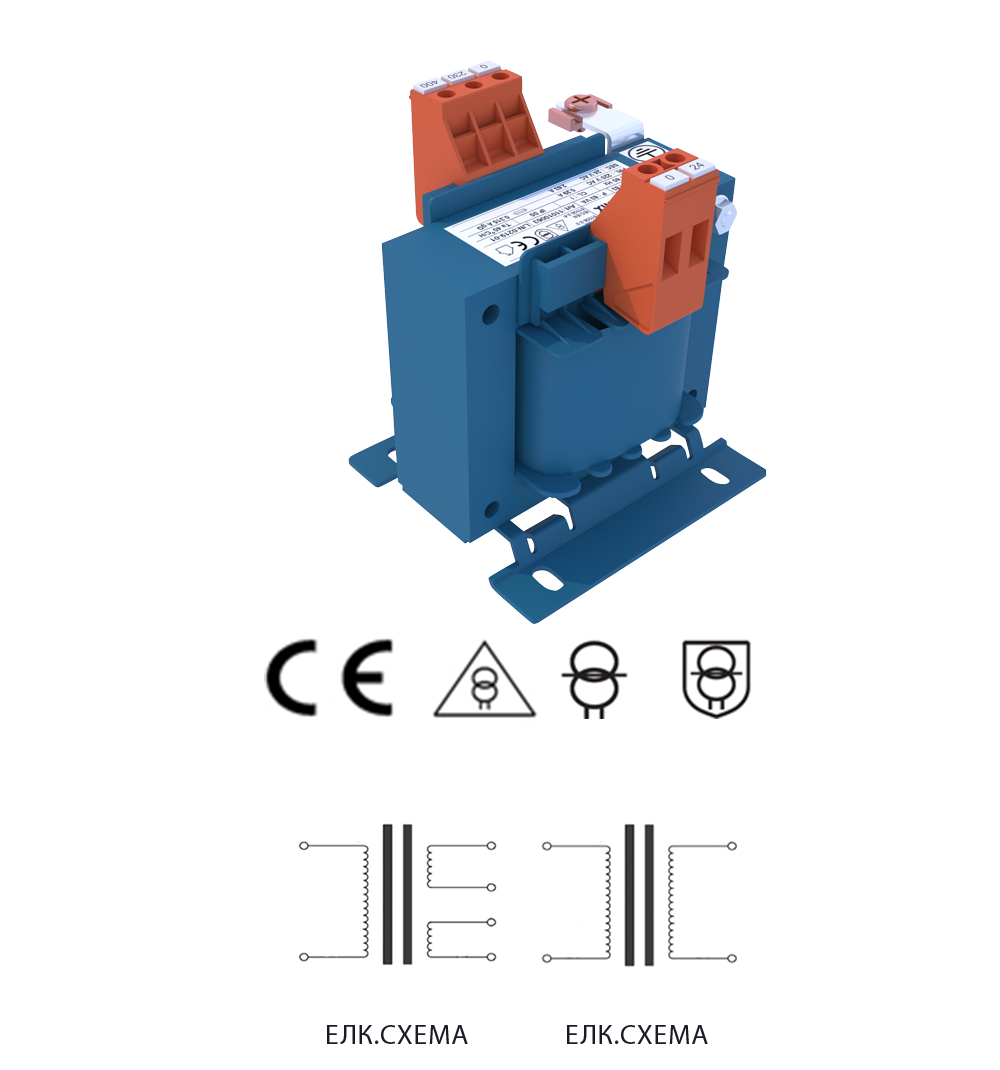

Isolating transformers with galvanic isolation provide a reliable supply to circuits with the safety measures “protective separation”.
The transformers provide double or reinforced isolation between the primary and secondary sides.
Any requested network configuration is possible for the secondary side, whether this involves a monitored isolated system or grounded system with fuse elements.
The output voltage for the isolating transformers can be between 50 Vac and 1,000 Vac or 120 Vdc and 1,415 Vdc.

trafoV222121v4
DESIGN:Control power supply transformers: DIN EN 61558-2-2
Separating Transformers:
DIN EN 61558-2-4
Protective Separation Transformers:
DIN EN 61558-2-6
POWER: 25-2500VA
INPUT VOLTAGE:
220 VAC ; 230 VAC ; 380 VAC ; 400 VAC ; 500 VAC
OUTPUT VOLTAGE:
12 ; 24 ; 115 ; 230 ; 2*12 ; 2*24 ; 2*115
FREQUENCY: 50/60 Hz
AROUND TEMPERATURE: 40 °C
DEGREE OF PROTECTION: IP00 / IP20
PROTECTION CLASS: I
INSULATION CLASS: B 130 °C
PH.PHS.PHT
INPUT VOLTAGE:220 VAC
OUTPUT VOLTAGE
ARTICLE NUMBER

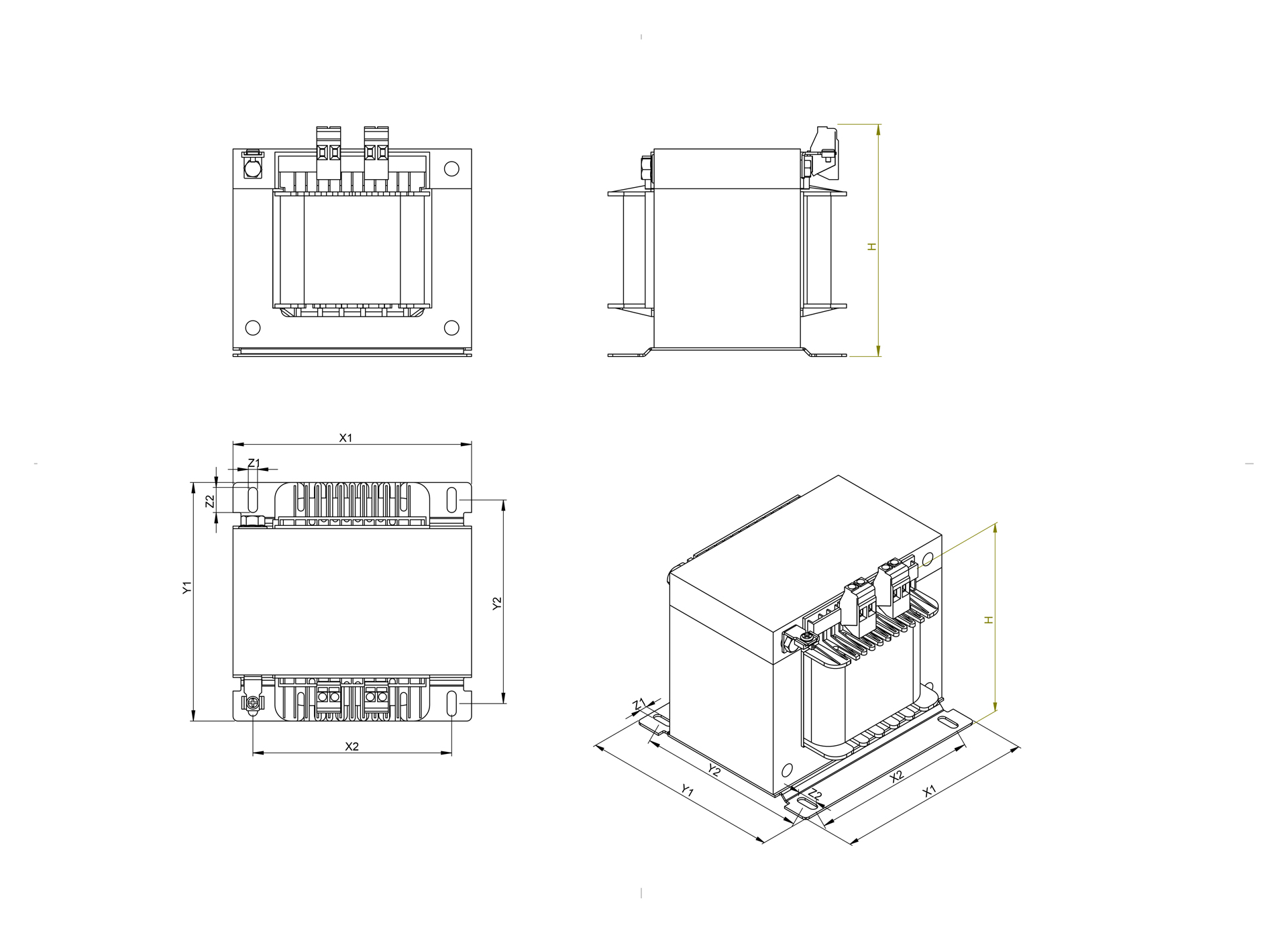

VA 12 VAC 24 VAC 110 VAC 220 VAC 2x12 VAC 2x24 VAC X1 X2 Y1 Y2 H Z1 Z2 KG
25 21222512 21222524 212225110 212225220 212225212 212225224 67 50 53 42 79 4,8 6 0,7
40 21224012 21224024 212240110 212240220 212240212 212240224 67 50 66 55 79 4,8 6 1,2
63 21226312 21226324 212263110 212263220 212263212 212263224 85 64 64 51,5 93 4,8 8 1,5
100 212210012 212210024 2122100110 2122100220 2122100212 2122100224 85 64 76 63,5 93 4,8 8 2,1
130 212213012 212213024 2122130110 2122130220 2122130212 2122130224 85 64 84,5 72 93 4,8 8 2,4
160 212216012 212216024 2122160110 2122160220 2122160212 2122160224 97 84 88 72,6 104 5,8 9 2,9
200 212220012 212220024 2122200110 2122200220 2122200212 2122200224 97 84 105 90 104 5,8 9 3,6
250 212225012 212225024 2122250110 2122250220 2122250212 2122250224 97 84 105 89,8 104 5,8 9 3,6
320 212232012 212232024 2122320110 2122320220 2122320212 2122320224 121 90 91 73 121 5,8 12 4,2
400 212240024 2122400110 2122400220 121 90 104 85 121 5,8 12 5,2
500 212250024 2122500110 2122500220 121 90 124 106 121 5,8 12 7
630 212263024 2122630110 2122630220 151 122 104 84 145 7 15 7,8
800 212280024 2122800110 150 122 121 101 145 7 15 10
1000 2122100024 21221000110 2121000220 150 122 147 127 145 7 15 13,8
1300 21221300220 193 156 150 121 181 11 18 18,5
1600 21221600220 193 156 162 133 181 11 18 21
2000 21222000220 193 156 184 155 181 11 18 23,3
2500 21222500220 193 156 190 161 181 11 18 25,6

All data are approximate, deviations may be possible. Other dimensions and technical changes are available on request.
