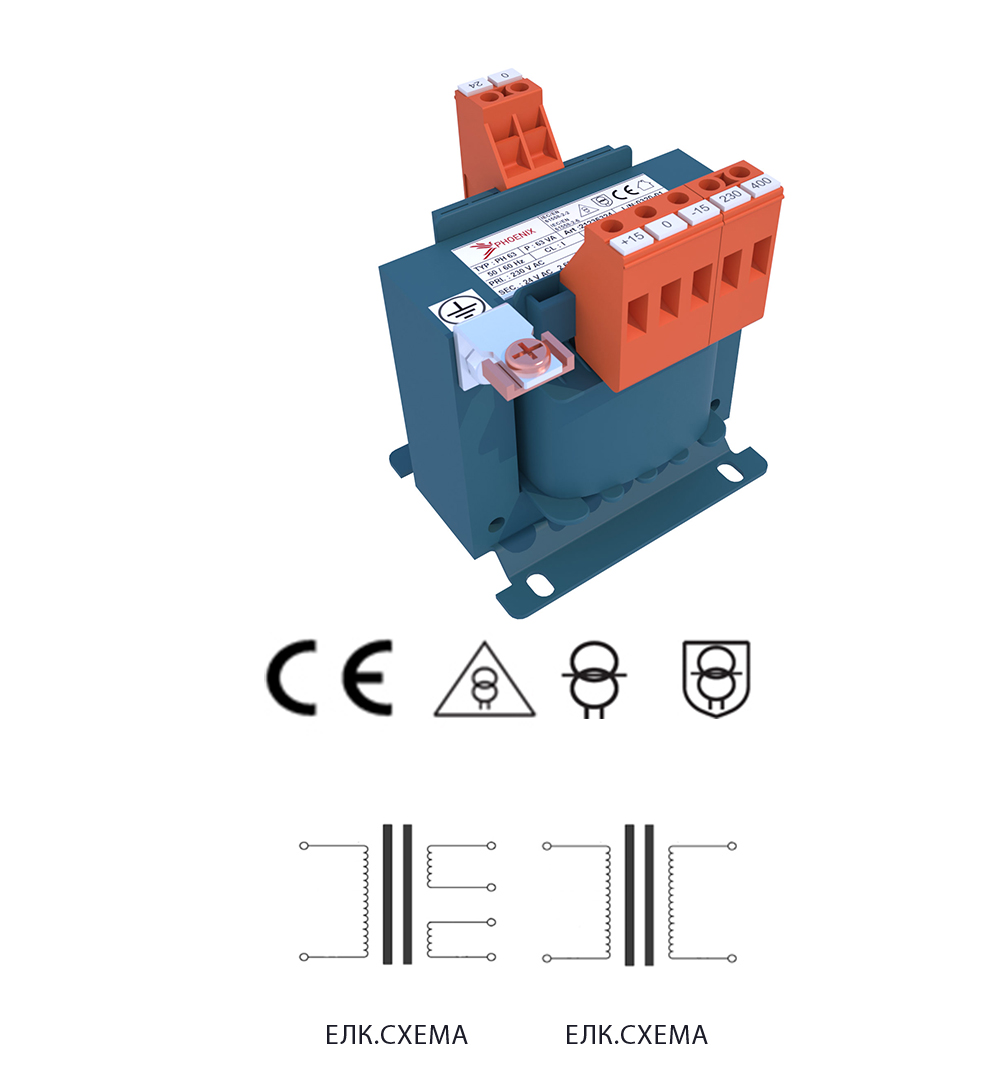

Safety transformers with galvanic isolation provide a reliable supply to power circuits with the safety measures “protective separation” or “protection through shutdown”. Double or reinforced isolation between the primary and secondary sides protects SELV and PELV circuits. Safety transformers provide safety extra low voltages below 50 Vac or 120 Vdc.
Isolating transformers with galvanic isolation provide a reliable supply to circuits with the safety measures “protective separation”.
The transformers provide double or reinforced isolation between the primary and secondary sides.
Any requested network configuration is possible for the secondary side, whether this involves a monitored isolated system or grounded system with fuse elements.
The output voltage for the isolating transformers can be between 50 Vac and 1,000 Vac or 120 Vdc and 1,415 Vdc.
PHI
Design:
ТControl transformer according to: DIN EN 61558-2-2: DIN EN 61558-2-2
Isolating transformer according to: DIN EN 61558-2-4
Safety transformer according to:
DIN EN 61558-2-6
Power Output:
25-2500VA
Input Voltage:
230/400VAC +/-15VAC
Output Voltage:
12 ; 24 ; 115 ; 230 ; 2*12 ; 2*24 ; 2*115
Frequency:
50/60 Hz
Ambient Temperature:
40 °C
Protection Degree:
IP00 suitable until IP 20
Protection Class:
I
Insulation Class:
B 130 °C
PHI
Input Voltage:230V/400V+/-15V
Output Voltage:
Artikel Number

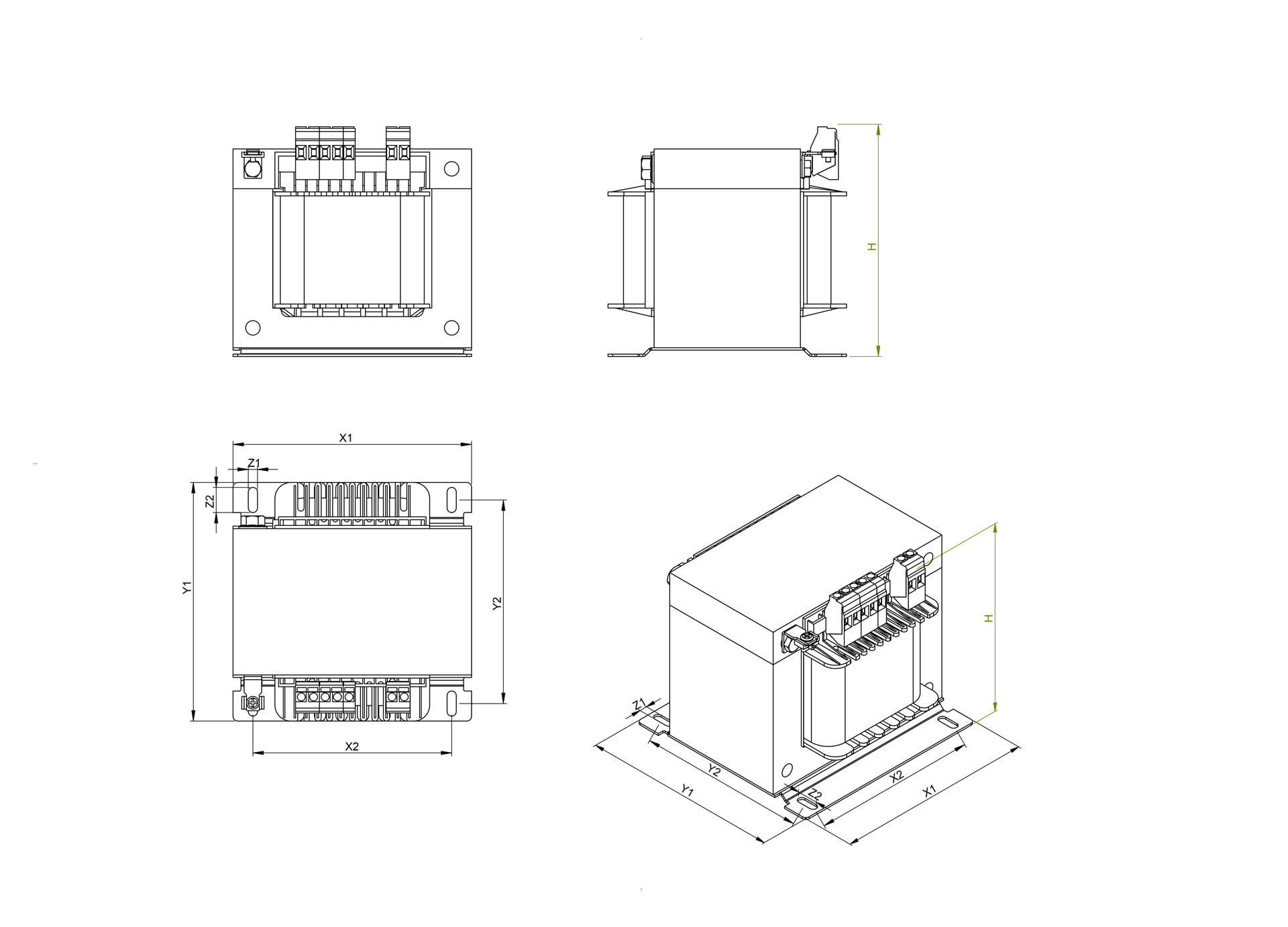

VA 12 VAC 24 VAC 115 VAC 230 VAC 2x12 VAC 2x24 VAC 2x115 VAC X1 X2 Y1 Y2 H Z1 Z2 KG
25 2112512 2112524 21125115 21125230 67 50 53 42 79 4,8 6 0,7
40 2114012 2114024 21140115 21140230 67 50 66 55 79 4,8 6 1,2
63 2116312 2116324 21163115 21163230 21163212 21163224 211632115 85 64 64 52 93 4,8 8 1,5
100 21110012 21110024 211100115 211100230 211100212 211100224 2111002115 85 64 76 64 93 4,8 8 2,1
130 21113012 21113024 211130115 211130230 211130212 211130224 2111302115 85 64 84,5 72 93 4,8 8 2,4
160 21116012 21116024 211160115 211160230 211160212 211160224 2111602115 97 84 88 72,6 104 5,8 9 2,9
200 21120012 21120024 211200115 211200230 211200212 211200224 2112002115 97 84 105 90 104 5,8 9 3,6
250 21125012 21125024 211250115 211250230 211250212 211250224 2112502115 97 84 105 90 104 5,8 9 3,6
320 21132012 21132024 211320115 211320230 211320212 211320224 2113202115 121 90 91 73 121 5,8 12 4,2
400 21140024 211400115 211400230 211400212 211400224 2114002115 121 90 104 85 121 5,8 12 5,2
500 21150024 211500115 211500230 211500212 211500224 2115002115 121 90 124 106 121 5,8 12 7
630 21163024 211630115 211630230 2116302115 151 122 104 84 145 7 15 7,8
800 21180024 211800115 211630230 2118002115 150 122 121 101 145 7 15 10
1000 211100024 2111000115 2111000230 21110002115 150 122 147 127 145 7 15 13,8
1300 2111300230 21113002115 193 156 150 121 181 11 18 18,5
1600 2111600230 21116002115 193 156 162 133 181 11 18 21
2000 2112000230 21120002115 193 156 184 155 181 11 18 23,3
2500 2112500230 21125002115 193 156 190 161 181 11 18 25,6

All data are approximate, deviations may be possible. Other dimensions and technical changes are available on request.
