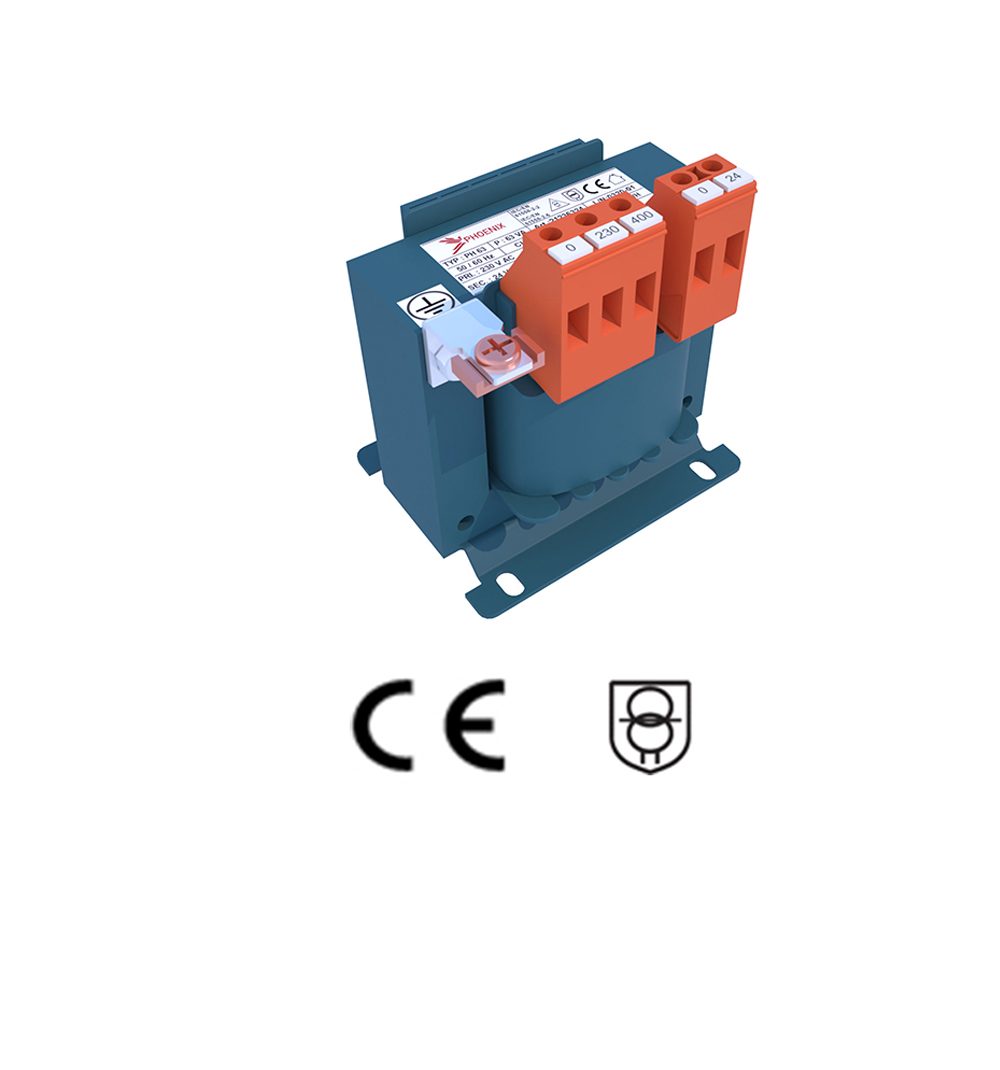

Safety transformers with galvanic isolation provide a reliable supply to power circuits with the safety measures “protective separation” or “protection through shutdown”.
Double or reinforced isolation between the primary and secondary sides protects SELV and PELV circuits. Safety transformers provide safety extra low voltages below 50 Vac or 120 Vdc.
PHS
Design:
Safety transformer according to:
DIN EN 61558-2-6
Power Output:
25-2500VA
Input Voltage:
Max. 750 VAC
Output Voltage:
MAX. 50 VAC
Frequency:
50/60 Hz
Ambient Temperature:
40 °C
Protection Degree:
IP00 suitable until IP 20
Protection Class:
I
Insulation Class:
B 130 °C
PH.PHS.PHT

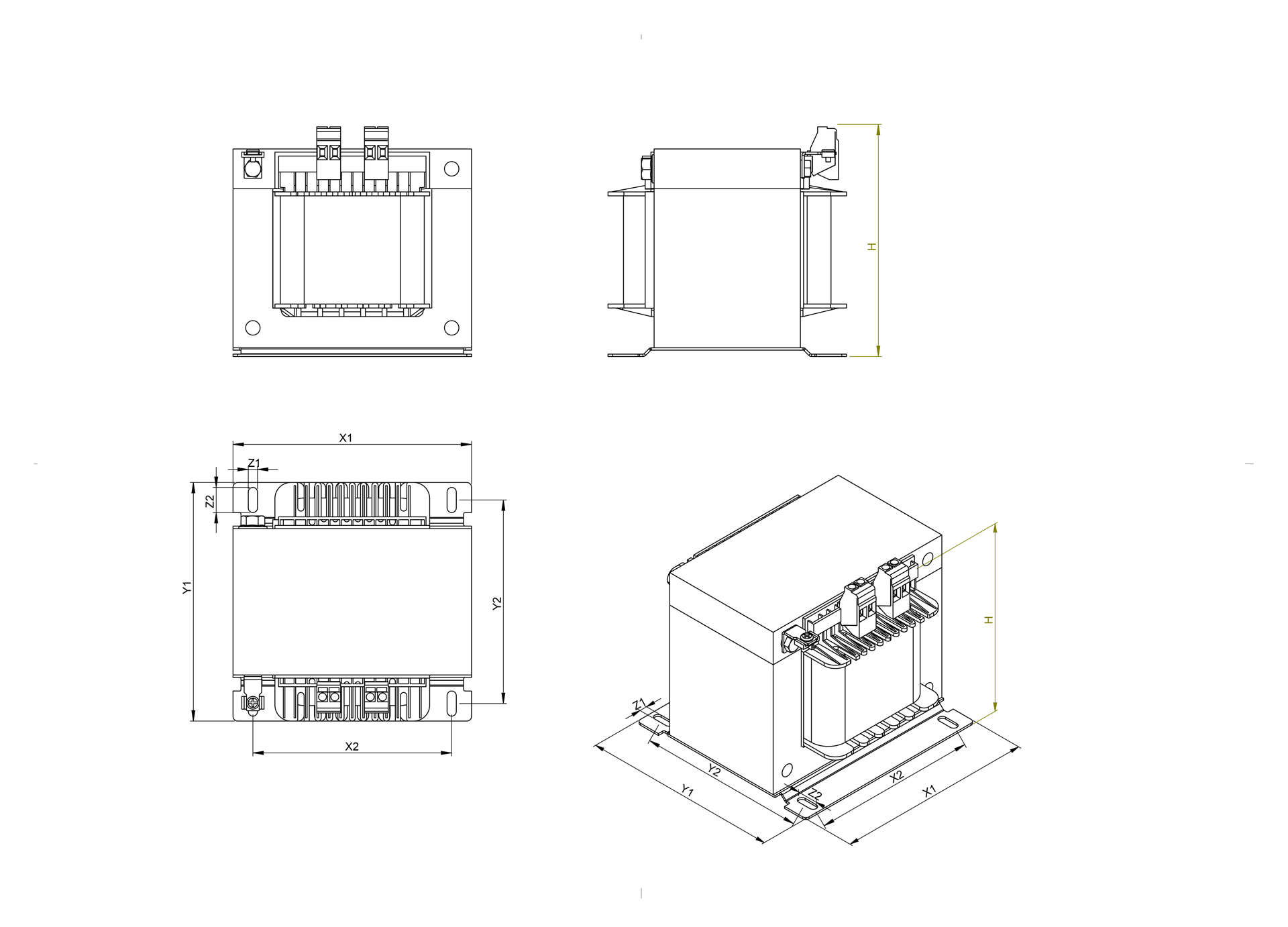

TYP VA X1 X2 Y1 Y2 H Z1 Z2 KG
212**** 25 67 50 53 42 79 4,8 6 0,7
212**** 40 67 50 66 55 79 4,8 6 1,2
212**** 63 85 64 64 52 93 4,8 8 1,5
212**** 100 85 64 76 64 93 4,8 8 2,1
212**** 130 85 64 84,5 72 93 4,8 8 2,4
212**** 160 97 84 88 72,6 104 5,8 9 2,9
212**** 200 97 84 105 90 104 5,8 9 3,6
212**** 250 97 84 105 90 104 5,8 9 3,6
212**** 320 121 90 91 73 121 5,8 12 4,2
212**** 400 121 90 104 85 121 5,8 12 5,2
212**** 500 121 90 124 106 121 5,8 12 7
212**** 630 151 122 104 84 145 7 15 7,8
212**** 800 150 122 121 101 145 7 15 10
212**** 1000 150 122 147 127 145 7 15 13,8
212**** 1300 193 156 150 121 181 11 18 18,5
212**** 1600 193 156 162 133 181 11 18 21
212**** 2000 193 156 184 155 181 11 18 23,3
212**** 2500 193 156 190 161 181 11 18 25,6

All data are approximate, deviations may be possible. Other dimensions and technical changes are available on request.
