Single-phase
Transformers
TFI
Isolating transformers with galvanic isolation provide a reliable supply to circuits with the safety measures “protective separation”.
The transformers provide double or reinforced isolation between the primary and secondary sides.
Any requested network configuration is possible for the secondary side, whether this involves a monitored isolated system or grounded system with fuse elements.
The output voltage for the isolating transformers can be between 50 Vac and 1,000 Vac or 120 Vdc and 1,415 Vdc.
The transformers provide double or reinforced isolation between the primary and secondary sides.
Any requested network configuration is possible for the secondary side, whether this involves a monitored isolated system or grounded system with fuse elements.
The output voltage for the isolating transformers can be between 50 Vac and 1,000 Vac or 120 Vdc and 1,415 Vdc.
Design:
Isolating transformer according to: DIN EN 61558-2-1 , DIN EN 61558-2-4
Power Output: 100-50000VA
Input Voltage: Max. 1000 VAC
Output Voltage: MAX. 1000 VAC
Frequency: 50/60 Hz
Ambient Temperature: 40 °C
Protection Degree: IP00
Protection Class: I
Insulation Class: B (130 ° C) - standard up to 5 kVA, F (155 ° C) - standard above 5 kVA
Isolating transformer according to: DIN EN 61558-2-1 , DIN EN 61558-2-4
Power Output: 100-50000VA
Input Voltage: Max. 1000 VAC
Output Voltage: MAX. 1000 VAC
Frequency: 50/60 Hz
Ambient Temperature: 40 °C
Protection Degree: IP00
Protection Class: I
Insulation Class: B (130 ° C) - standard up to 5 kVA, F (155 ° C) - standard above 5 kVA

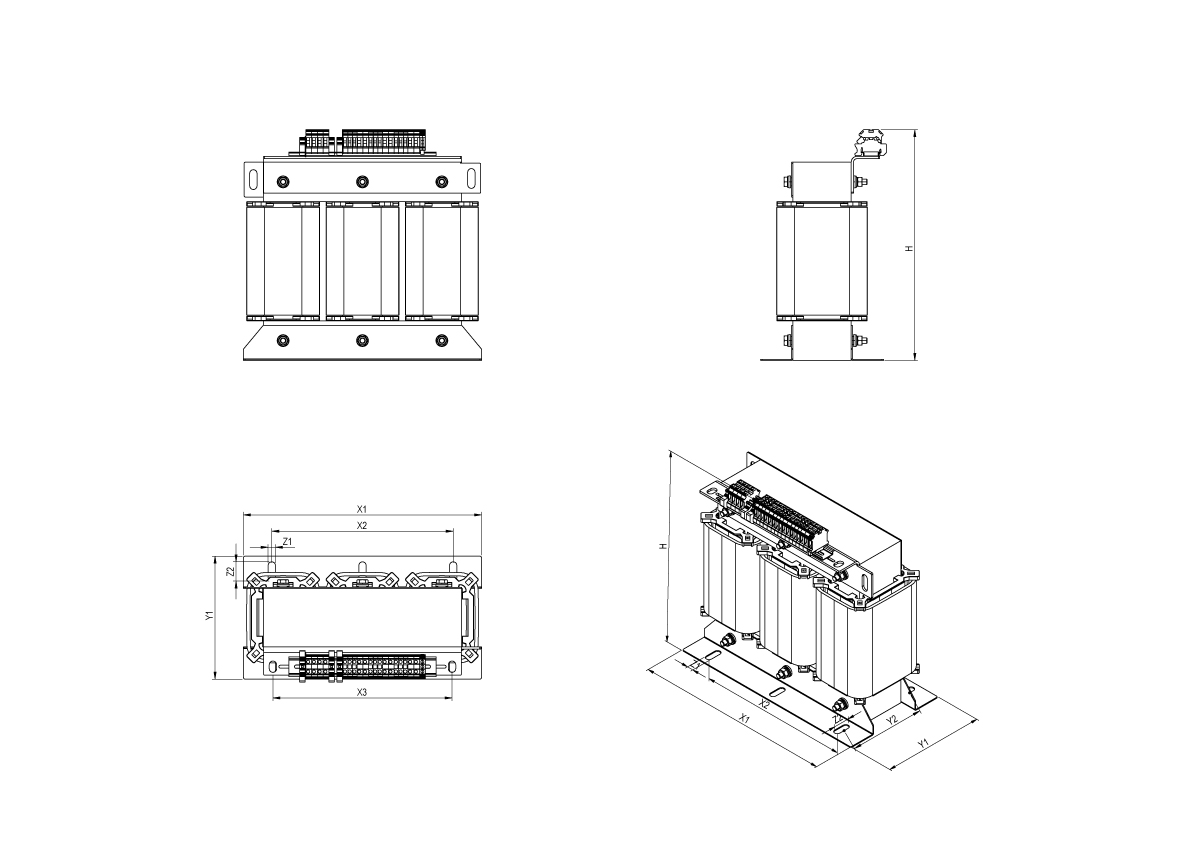

| TYP | VA | X1 | X2 | Y1 | Y2 | H | Z1 | Z2 | KG |
|---|---|---|---|---|---|---|---|---|---|
| 314**** | 100 | 122 | 90 | 53 | 39 | 140 | 5 | 10 | 2,1 |
| 314**** | 125 | 122 | 90 | 53 | 39 | 140 | 5 | 10 | 2,5 |
| 314**** | 160 | 122 | 90 | 63 | 49 | 140 | 5 | 10 | 4,3 |
| 314**** | 250 | 152 | 113 | 67 | 50 | 158 | 6 | 11 | 4,9 |
| 314**** | 320 | 152 | 113 | 82 | 65 | 168 | 6 | 11 | 5,8 |
| 314**** | 400 | 152 | 113 | 82 | 65 | 168 | 6 | 11 | 6 |
| 314**** | 500 | 183 | 136 | 76 | 57 | 190 | 7 | 12 | 7,5 |
| 314**** | 630 | 183 | 136 | 86 | 67 | 190 | 7 | 12 | 8,7 |
| 314**** | 800 | 183 | 136 | 96 | 77 | 190 | 7 | 12 | 11,5 |
| 314**** | 1000 | 183 | 136 | 96 | 77 | 190 | 7 | 12 | 14,6 |
| 314**** | 1250 | 243 | 185 | 97 | 71 | 260 | 9 | 14 | 16 |
| 314**** | 1600 | 243 | 185 | 107 | 81 | 260 | 9 | 14 | 20,5 |
| 314**** | 2000 | 243 | 185 | 117 | 91 | 260 | 9 | 14 | 23 |
| 314**** | 2500 | 305 | 224 | 124 | 94 | 320 | 10 | 15 | 27 |
| 314**** | 3200 | 305 | 224 | 152 | 122 | 320 | 10 | 15 | 33 |
| 314**** | 4000 | 305 | 224 | 152 | 122 | 320 | 10 | 15 | 34,5 |
| 314**** | 5000 | 305 | 224 | 162 | 132 | 320 | 10 | 15 | 39 |
| 314**** | 6300 | 370 | 264 | 162 | 132 | 380 | 10 | 15 | 52 |
| 314**** | 8000 | 370 | 264 | 185 | 155 | 380 | 10 | 15 | 54 |
| 314**** | 10000 | 430 | 316 | 205 | 173 | 440 | 12 | 17 | 62 |
| 314**** | 12500 | 430 | 316 | 205 | 173 | 440 | 12 | 17 | 90 |
| 314**** | 18000 | 430 | 316 | 212 | 180 | 440 | 12 | 17 | 110 |
| 314**** | 20000 | 430 | 316 | 235 | 203 | 440 | 12 | 17 | 118 |
| 314**** | 25000 | 490 | 356 | 195 | 157 | 490 | 15 | 20 | 125 |
| 314**** | 30000 | 490 | 356 | 222 | 184 | 490 | 15 | 20 | 165 |
| 314**** | 40000 | 600 | 450 | 180 | 150 | 570 | 18 | 23 | 220 |
| 314**** | 50000 | 600 | 450 | 205 | 175 | 570 | 18 | 23 | 340 |
All data are approximate, deviations may be possible. Other dimensions and technical changes are available on request.
