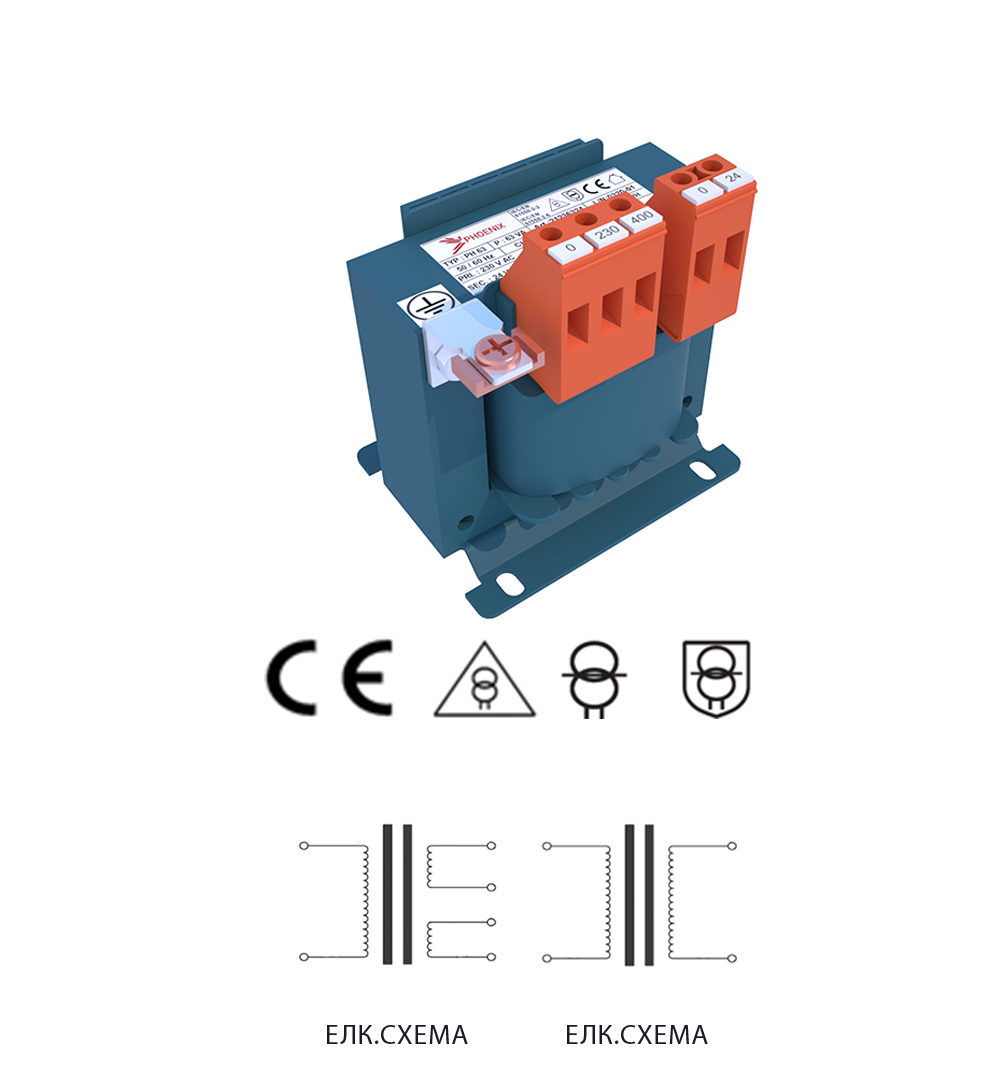

Safety transformers with galvanic isolation provide a reliable supply to power circuits with the safety measures “protective separation” or “protection through shutdown”. Double or reinforced isolation between the primary and secondary sides protects SELV and PELV circuits. Safety transformers provide safety extra low voltages below 50 Vac or 120 Vdc.
Isolating transformers with galvanic isolation provide a reliable supply to circuits with the safety measures “protective separation”.
The transformers provide double or reinforced isolation between the primary and secondary sides.
Any requested network configuration is possible for the secondary side, whether this involves a monitored isolated system or grounded system with fuse elements.
The output voltage for the isolating transformers can be between 50 Vac and 1,000 Vac or 120 Vdc and 1,415 Vdc.
phm
Design:
Control transformer according to:
DIN EN 61558-2-2
Isolating transformer according to: DIN EN 61558-2-4
Safety transformer according to:
DIN EN 61558-2-6
Power Output:
25-2500VA
Input Voltage:
230/400VAC
Output Voltage:
12 ; 24 ; 115 ;230 ; 2*12 ; 2*24 ; 2*115
Frequency:
50/60 Hz
Ambient Temperature:
40 °C
Protection Degree:
IP00 suitable until IP 20
Protection Class:
I
Insulation Class:
B 130 °C
PHM
Input Voltage: 230V/400VAC
Output Voltage:
Artikel Number

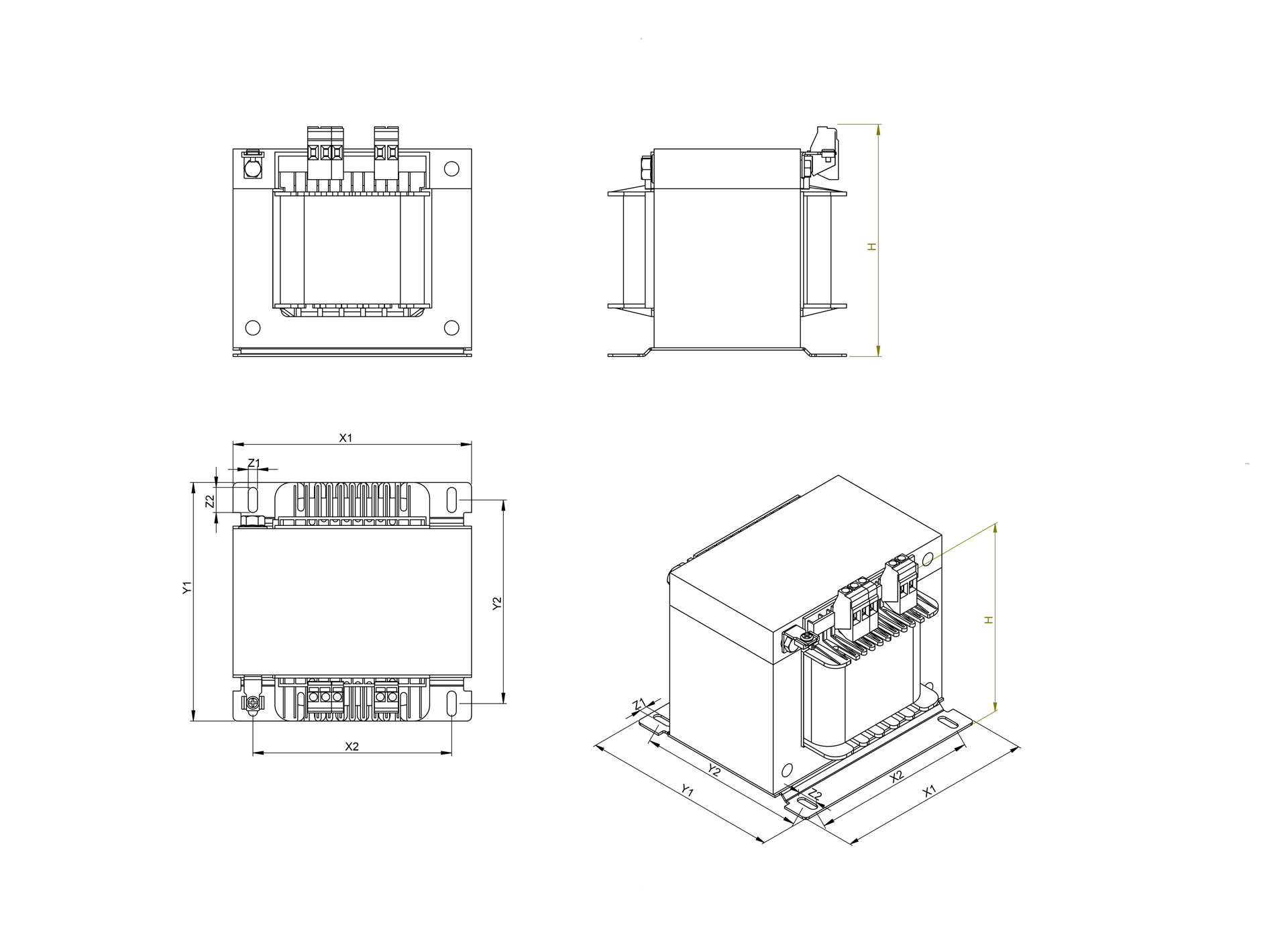

VA 12 VAC 24 VAC 115 VAC 230 VAC 2x12 VAC 2x24 VAC 2x115 VAC X1 X2 Y1 Y2 H Z1 Z2 KG
25 2162512 2162524 21625115 21625230 67 50 53 42 79 4,8 6 0,7
40 2164012 2164024 21640115 21640230 67 50 66 55 79 4,8 6 1,2
63 2166312 2166324 21663115 21663230 21663212 21663224 216632115 85 64 64 52 93 4,8 8 1,5
100 21610012 21610024 216100115 216100230 216100212 216100224 2161002115 85 64 76 64 93 4,8 8 2,1
130 21613012 21613024 216130115 216130230 216130212 216130224 2161302115 85 64 84,5 72 93 4,8 8 2,4
160 21616012 21616024 216160115 216160230 216160212 216160224 2161602115 97 84 88 72,6 104 5,8 9 2,9
200 21620012 21620024 216200115 216200230 216200212 216200224 2162002115 97 84 105 90 104 5,8 9 3,6
250 21625012 21625024 216250115 216250230 216250212 216250224 2162502115 97 84 105 90 104 5,8 9 3,6
320 21632012 21632024 216320115 216320230 216320212 216320224 2163202115 121 90 91 73 121 5,8 12 4,2
400 21640024 216400115 216400230 216400212 216400224 2164002115 121 90 104 85 121 5,8 12 5,2
500 21650024 216500115 216500230 216500212 216500224 2165002115 121 90 124 106 121 5,8 12 7
630 21663024 216630115 216630230 2166302115 151 122 104 84 145 7 15 7,8
800 21680024 216800115 216630230 2168002115 150 122 121 101 145 7 15 10
1000 216100024 2161000115 2161000230 21610002115 150 122 147 127 145 7 15 13,8
1300 2161300230 21613002115 193 156 150 121 181 11 18 18,5
1600 2161600230 21616002115 193 156 162 133 181 11 18 21
2000 2162000230 21620002115 193 156 184 155 181 11 18 23,3
2500 2162500230 21625002115 193 156 190 161 181 11 18 25,6

All data are approximate, deviations may be possible. Other dimensions and technical changes are available on request.
